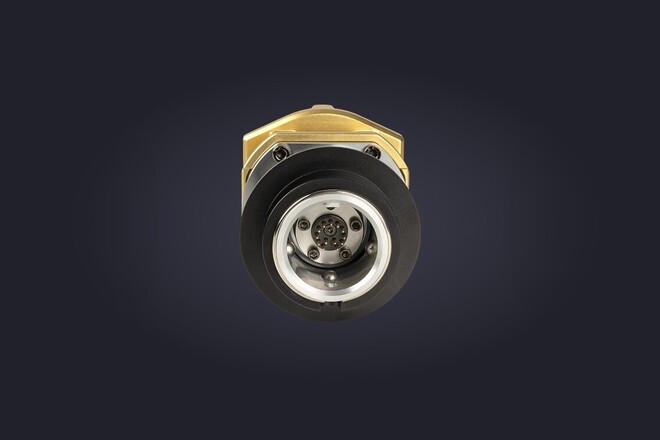

Podium Hub: The ultimate core for your modular steering wheel
The Podium Hub is the premium core component for the Fanatec® modular steering wheel system.
Aluminium monocoque
The space frame design surrounds the electronic components for the lightest possible weight. The central hub is created from a single piece of anodised aluminium for maximum strength.
High performance central core
Integrating a dedicated ARM processor, the Podium Hub is low latency, firmware upgradeable, and supports 10 buttons and dual 16-bit resolution analogue inputs. Additional buttons, axes, and displays can be connected via DataPort-C.
Customisation and Flexibility
Use the Podium Hub to mount wheel rims from Fanatec and other manufacturers, or even full steering wheels. Easily upgrade and customise using Fanatec modular components
Wheel rim compatibility
The Podium Hub features mounting holes for wheel rims using the 6x70mm or 3x50mm bolt pattern. It is possible to run third-party steering wheels on PC with USB cables as used on OSW Direct Drive for example.
Supports Podium Series modular components
The Podium Hub contains connectors for the Podium Advanced Paddle Module, two Universal Hub button clusters, and a DataPort-C connector for attaching Fanatec button or display modules.
Interchangeable Quick Release
The included ClubSport Quick Release Adapter allows you to connect directly to Fanatec CSL, ClubSport, and Podium wheel bases.
Compatibility
Wheel Bases
PODIUM Wheel Base DD1
PODIUM Wheel Base DD2
PODIUM Wheel Base DD1 PS4™
ClubSport DD Wheel Base
ClubSport DD+ Wheel Base
ClubSport Wheel Base V2*
ClubSport Wheel Base V2.5
CSL Elite Wheel Base*
CSL Elite Wheel Base V1.1*
CSL Elite Wheel Base + - officially licensed for PS4™
CSL DD Wheel Base
Gran Turismo DD Pro Wheel Base
*Control of Tuning Menu not possible without optional button module
Wheel Rims:
Please download the manual to see the information about the compatible 6 hole or 3 hole patterns. Many wheel rims from SPARCO, MOMO, OMP and others will be compatible but you need to make sure with the manufacturer of the rim you want to use.
Accessories:
Podium Advanced Paddle Module
ClubSport Magnetic Paddle Module
Podium Button Module Endurance
Podium Button Module Rally
ClubSport Button Cluster Pack
All Wheel Rims
Platforms
PC: this product is compatible with Windows PC.
Xbox: this product is not compatible with Xbox systems.
PlayStation: The functionality of this product on PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. PlayStation 5: Check our platform compatibility page for more details.
What's included
Podium Hub
Wheel-side quick release (selected before checkout, packaged separately)
2 mm Allen key
Safety bolt
Quick Guide
