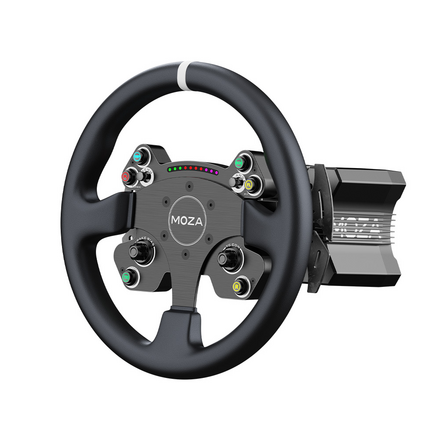

Elevate your racing experience with the MOZA R9 V2 wheelbase and CS V2P steering wheel bundle, combining the unmatched power of the MOZA R9’s 9 Nm torque with the precision and style of the CS steering wheel’s carbon fiber shifter paddles and customizable controls, delivering an immersive and high-performance racing experience.
Platform PC
Drive Type Direct Drive
Max Wheel Rotation Limitless
Housing Material Aviation Aluminum Alloy
Color Black
Peak Torque 9 Nm
Rated Power 180W
Input Voltage 110V~220V AC —>36V DC
USB Refresh Rate 1000Hz
Wheel Base Indicator Light Supported
APP Functionality Supported
Quick Release MOZA Quick Release
Connection Ports Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
Accessories Manual and Warranty Card, Power Supply, Data Cable, Toolkit
Mounting Method 4 holes on the bottom; exclusive holder that supports angle adjustment and side fix; Table clamp
Table Clamp Optional
Side Mounting Optional
Emergency Stop Switch Optional
Firmware Updating Applicable
Size (L x W x H)（mm） 240x157x124
CS V2
Grips Microfiber Leather
Face Plate Material Aluminum Alloy
Back Plate Material Aluminum Alloy
Shifter Material Forged Carbon Fiber
Size 13 Inches
Magnetic Shifters 2
Mechanical Key Buttons 6
Joysticks 2
Rotary Encoders 2
LED RGB Light Beads 10
Choice of Colors 7
Intelligent Telemetry Yes
Fully Adjustable RPM Leds through MOZA Pit House Supported
Release Method MOZA Quick Release
Communication Method Wireless
Shifter Sensor Non-contact Photoelectric Sensor
